Back Plate
Adhesive film as a reinforcement plate attached on the rear surface of the plastic OLED panel

Back Plate is an adhesive film attached on the rear surface of a POLED(Plastic OLED) panel to play the role of a reinforcement plate. It prevents curling, which is a phenomenon in which the panel is wound.

Product inquiry
Features
Has a high adhesive strength for attachment to the panel
Minimizes static electricity to protect the OLED element
Applications
Mobile OLED Mobile OLED
Wearable OLED Wearable OLED
Vehicle OLED Vehicle OLED
Foldable OLED Foldable OLED

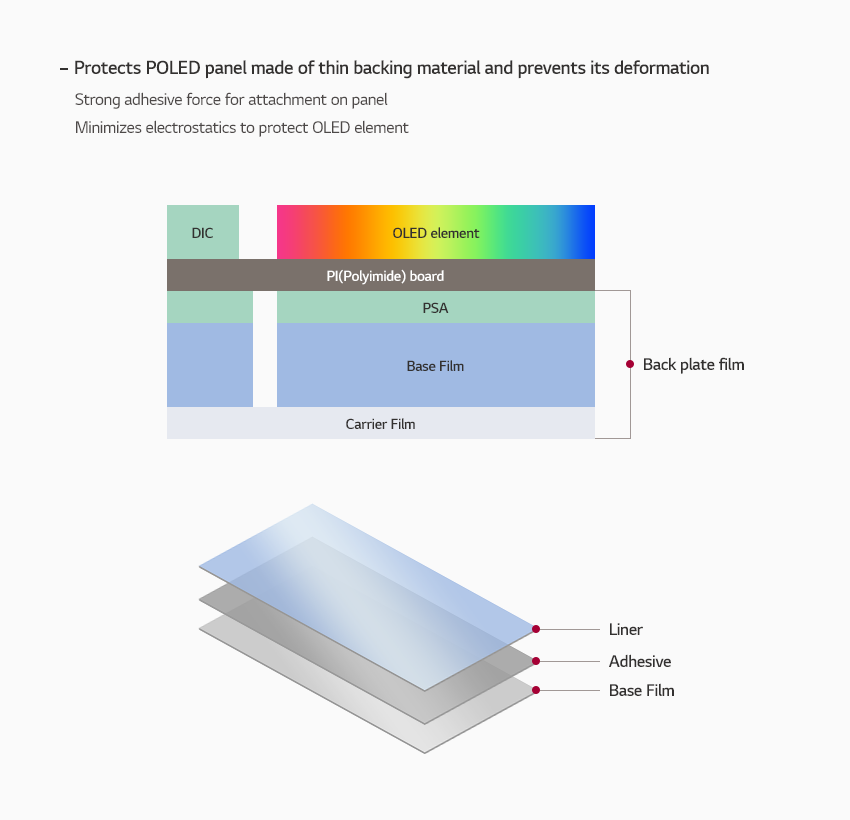

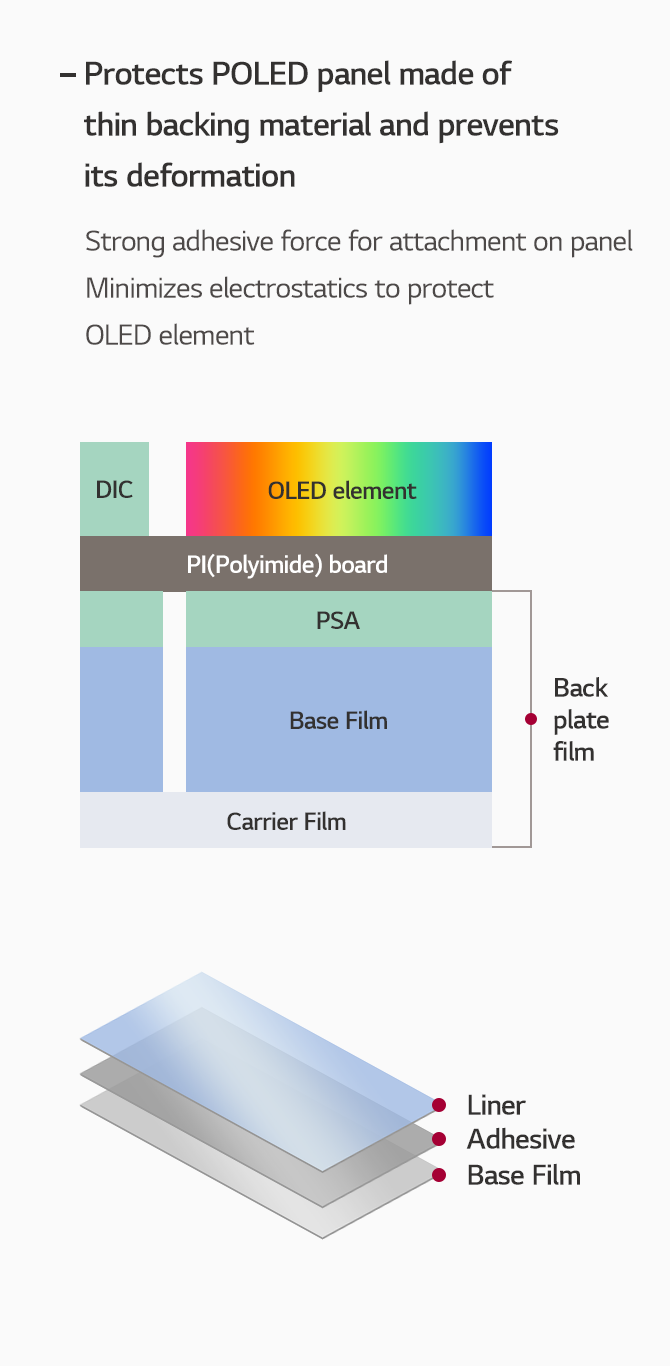

Product Functions and Structure
Back plate는 Plastic OLED은 PI 기판 위에 OLED소재와 DIC가 위치하고 뒷면에 부착되며 조는 Base Film - Adhesive - Liner로 구성
Back plate는 Plastic OLED은 PI 기판 위에 OLED소재와 DIC가 위치하고 뒷면에 부착되며 조는 Base Film - Adhesive - Liner로 구성
Related Items( 3 )
TPF
FSPM
OLED Materials
1 / 04
Product inquiry
Product Classification
Product Classification :Category ,Grade ,Features ,Applications ,Download
Category Grade Features Applications Download
Back Plate
General type
LPF-C series,Can handle cell size and full size(Max Half 6G)
POLED panel
Back Plate
Patterned type
LPF-C-M series, Suitable for narrow bezel, with bending patterns applied on general type
POLED panel
Back Plate
Changeable type
Suitable for narrow bezel (Max Half 6G), Can handle full size (Max Half 6G)
POLED panel
