DAF

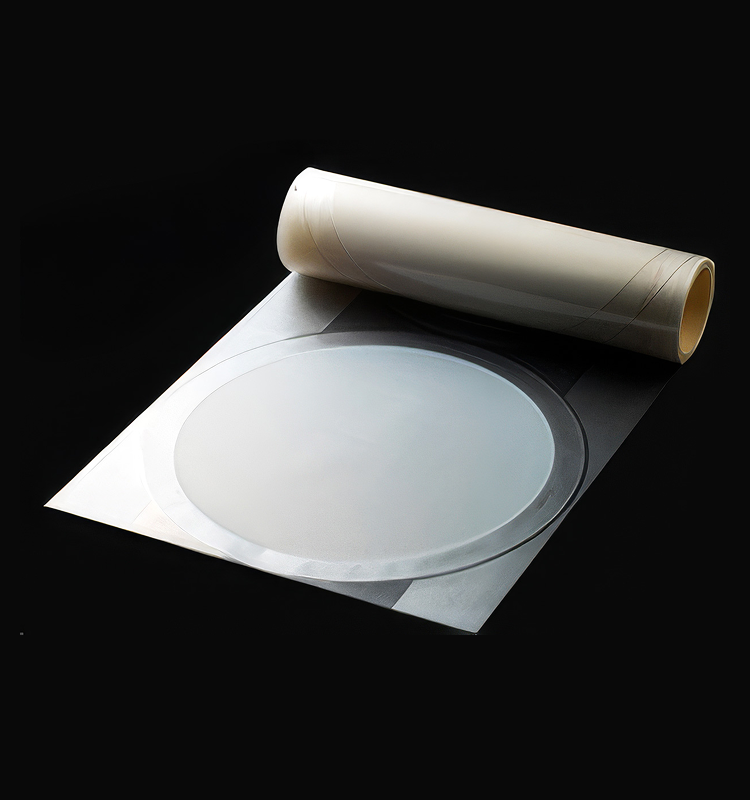

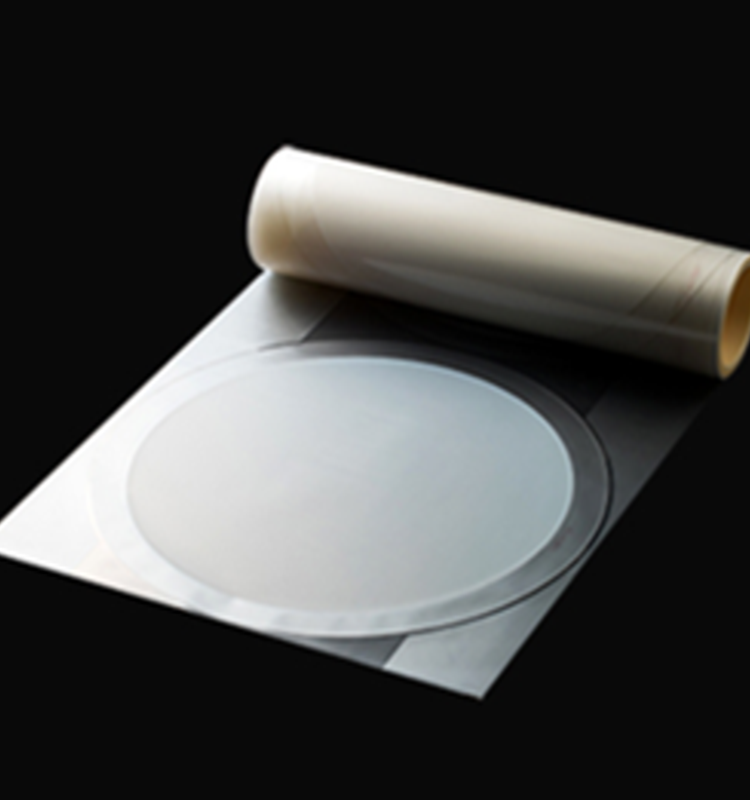

Die Attach Film

Film adhesive material for semiconductor package stacking and thinning

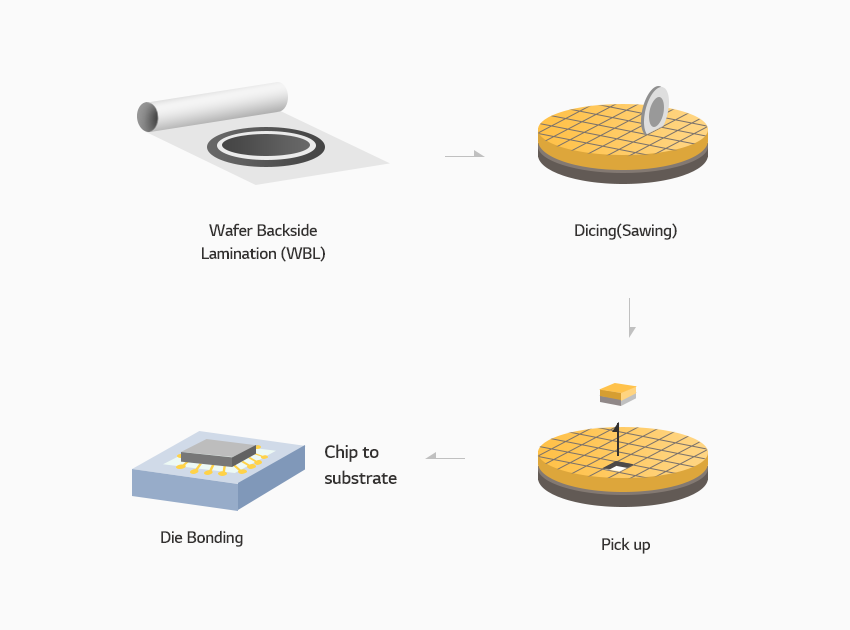

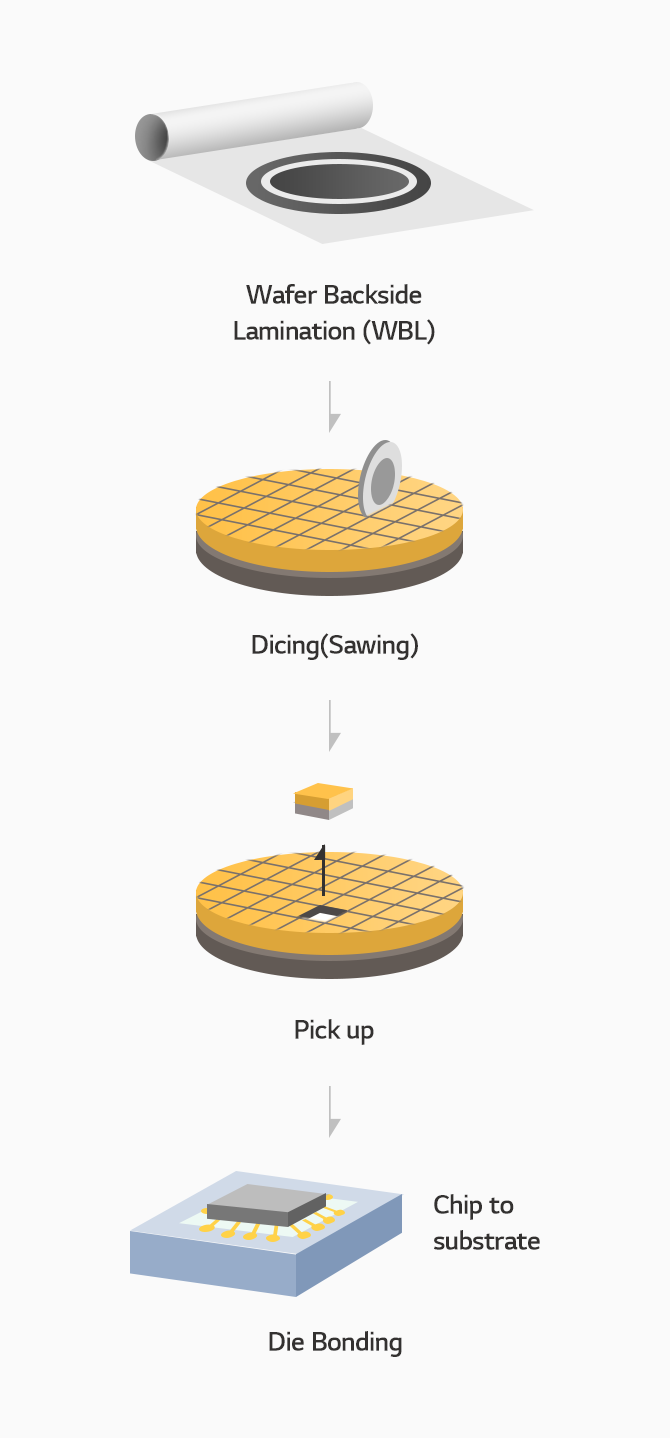

DAF (Die Attach Film) is a film‑type adhesive used in semiconductor packaging processes to attach semiconductor chips to substrates or to other chips. It integrates the functions of the dicing tape—which supports the wafer during singulation—and the die bonding tape used to attach the separated chips, enabling simplification of the overall packaging process.

As semiconductor packages become thinner and more highly integrated, the importance of adhesive materials that can minimize the gap between chips while reliably managing thermal and mechanical stress continues to grow. Leveraging ultra‑thin adhesive technology, LG Chem provides DAF solutions with excellent reliability and heat resistance, meeting the demanding requirements of high‑performance semiconductor packages.

Product inquiry

Features

Excellent Bonding Performance

Ultra‑thin

Void Free

Chip Crack Free

Applications

PC / Server DRAM

Mobile DRAM

NAND

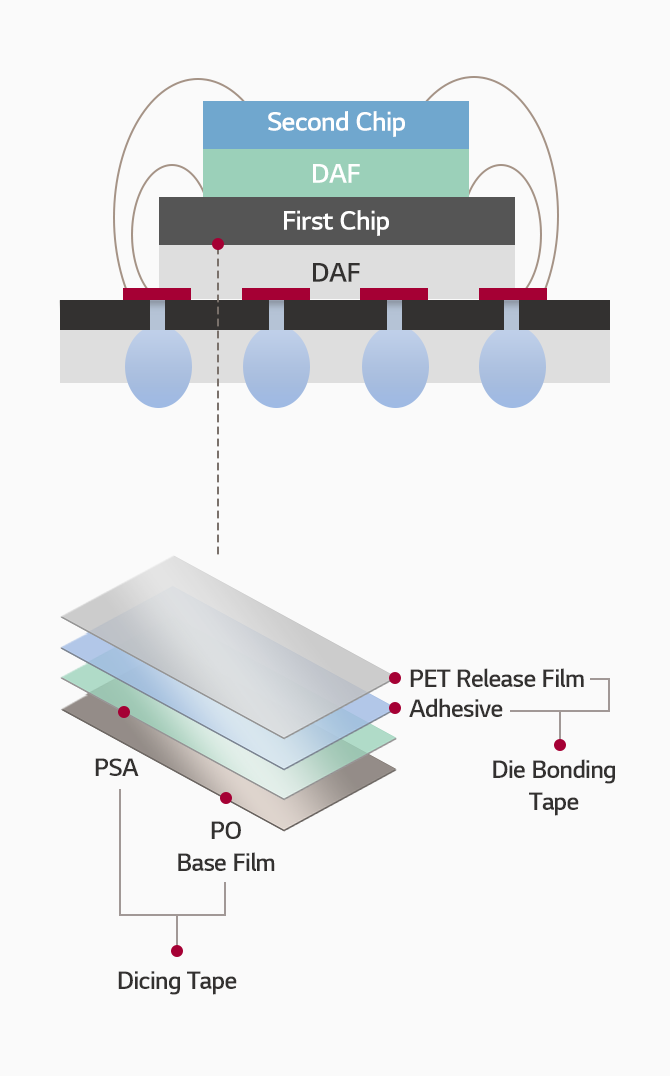

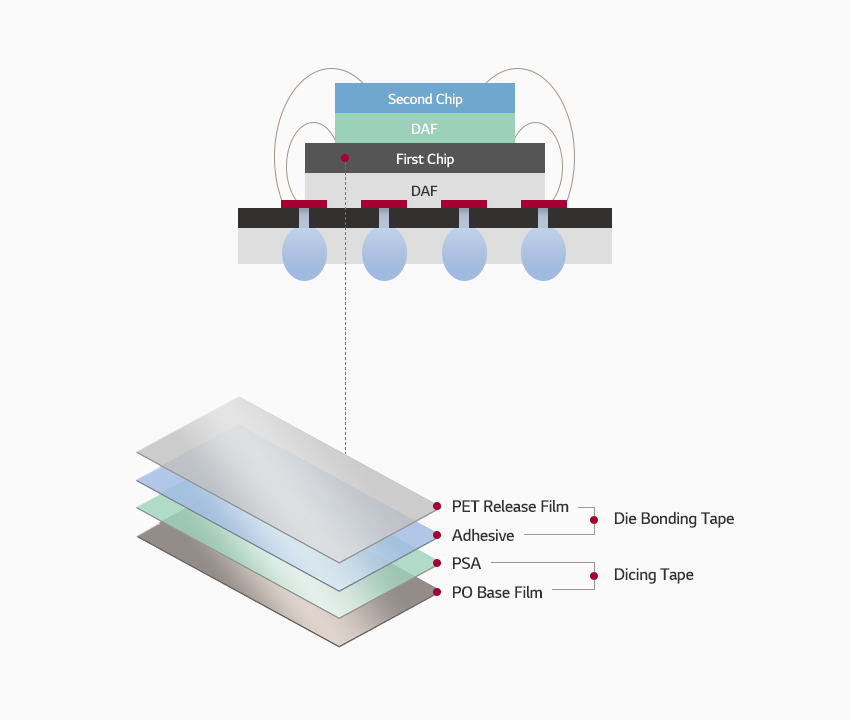

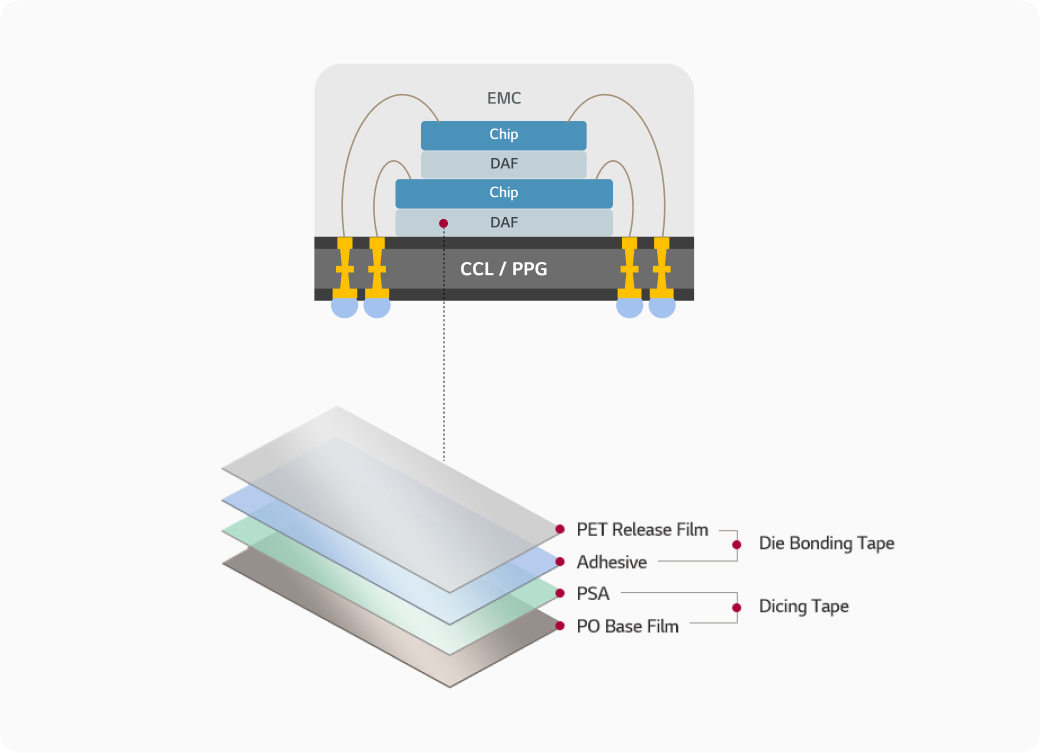

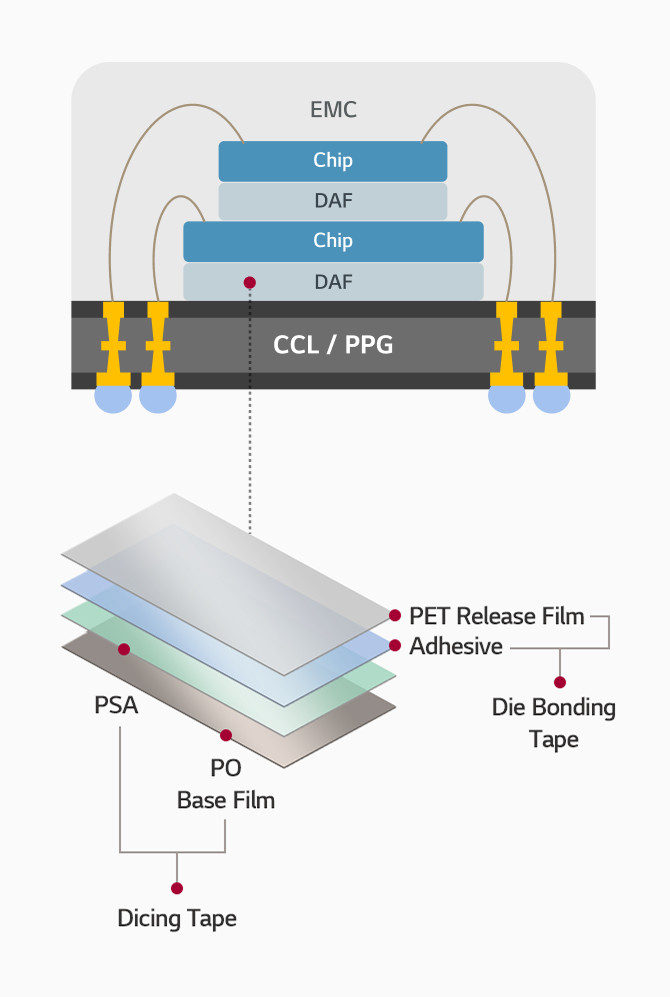

Product Functions and Structure

• Uniform‑thickness control ensuring stable bonding quality
• High‑modulus design providing crack‑resistant solutions for thin and ultra‑thin wafers
• Excellent gap‑filling characteristics and void‑free bonding after die‑attach cure enhancing reliability
• High adhesion strength enabling reliable bonding across various substrates and chips
• Superior heat resistance and reliability supporting high‑temperature processes and thermal‑cycling environments
• Compatible with both blade and stealth dicing processes

Product Group

Advanced Adhesive Products and Their Functions

Product inquiry

Product Classification

Product Classification :Category ,Grade ,Features ,Applications ,Download
Category	Grade	Features	Applications
DAF	Normal	• Chip‑to‑substrate and chip‑to‑chip bonding capability • Void‑free performance after molding • High reliability and high thermal‑budget performance	• LPDDR, SSD, uMCP, UFS, eMMC (DAF Thickness : 5, 10, 20㎛)
DAF	High Modulus	• Applicable to thin wafers • Crack‑reduction capability for thin wafers enabled by high‑modulus characteristics during pre‑cure • High reliability enabled by superior void‑free performance	• LPDDR, SSD, uMCP, UFS, eMMC (DAF Thickness : 5, 10, 20㎛)
DAF	High thermal conductivity	• Superior thermal conductivity compared to standard DAF materials • Excellent gap‑fill capability enabled by low‑viscosity characteristics • Applicable to thin wafers • Excellent package‑level reliability	• LPDDR, SSD, uMCP, UFS, eMMC (DAF Thickness : 5, 10, 20㎛)
DAF	FOW (Film Over Wire)	• Chip‑to‑chip bonding and wire‑embedding capability • Void‑free performance after die‑attach curing • Excellent wire‑embedding performance	• LPDDR, uMCP (DAF Thickness : 40, 50, 60 ㎛)
DAF	FOD (Film Over Die)	• Chip embedding and bonding capability • Excellent embedding performance for controllers, chips, and wires • Excellent HAST reliability • Minimized fillet formation	• uMCP, UFS, eMMC (DAF Thickness : 100 ~ 120㎛)
