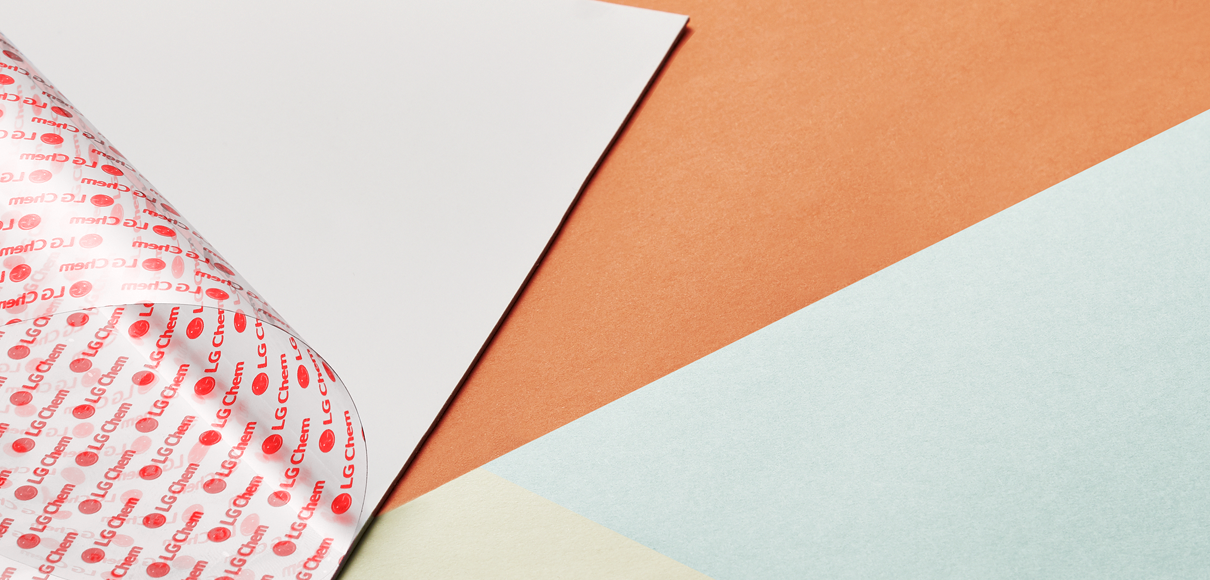

![Thermal Pad](/upload/file/product/69/global/0_thermalpad_kor.png)

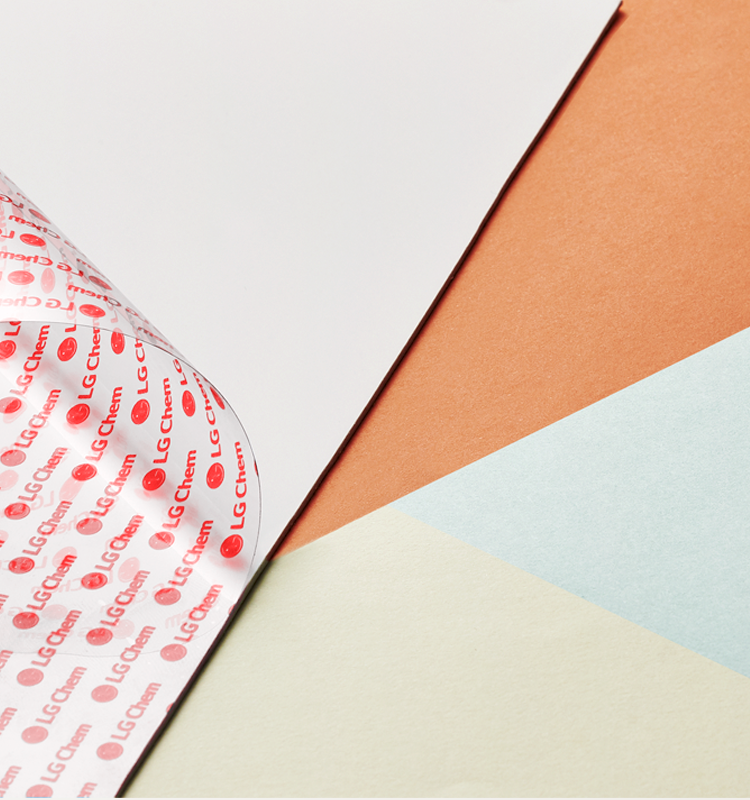

![Thermal Pad](/upload/file/product/69/global/m_0_thermalpad_kor.png)
Thermal Pad is a heat-discharging pad used to control the heat generated in a battery. Located between the battery module and the heat sink of outside of the pack, it transfers heat generated inside to outside.

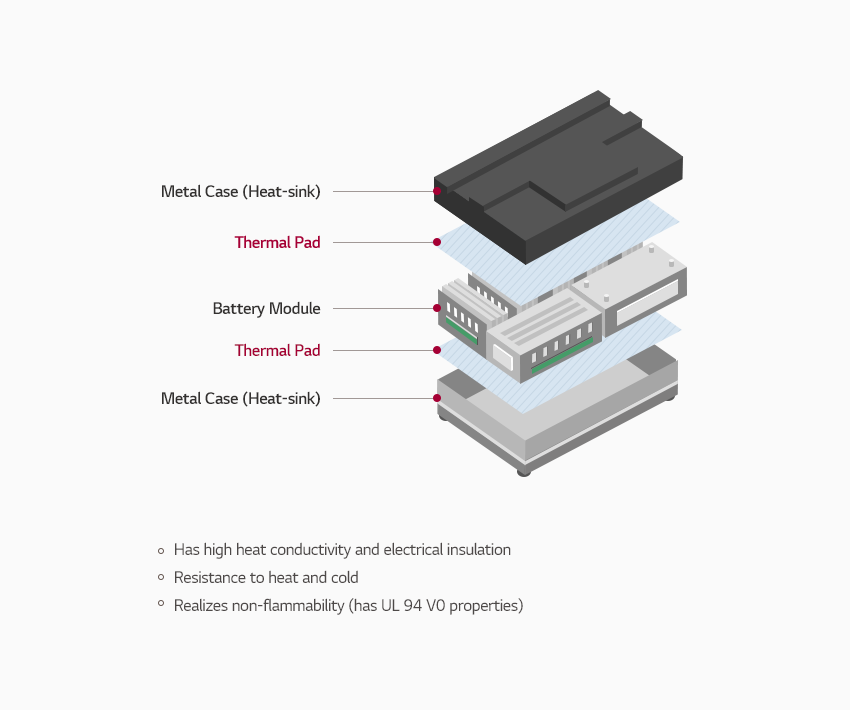

![Thermal Pad 사용 구조 : 제일 하단부터 Metal case (Heat-sink)- Thermal Pad - 배터리모듈 - Metal case (Heat-sink)](/upload/file/product/69/global/1_thermalpad_en_v1.png)
![Thermal Pad 사용 구조 : 제일 하단부터 Metal case (Heat-sink)- Thermal Pad - 배터리모듈 - Metal case (Heat-sink)](/upload/file/product/69/global/m_1_thermalpad_kor.png)

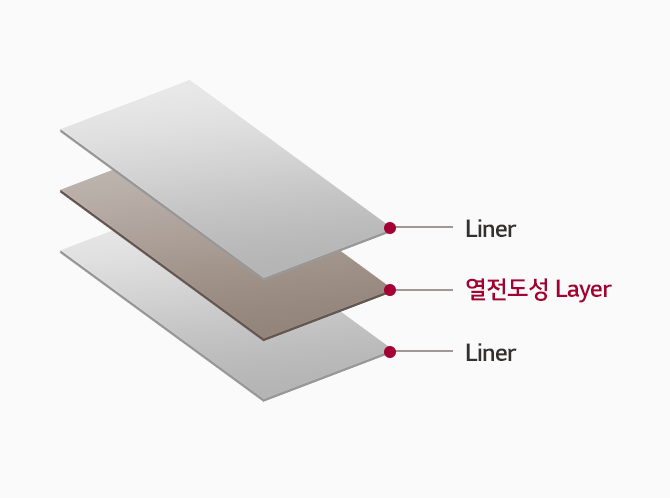

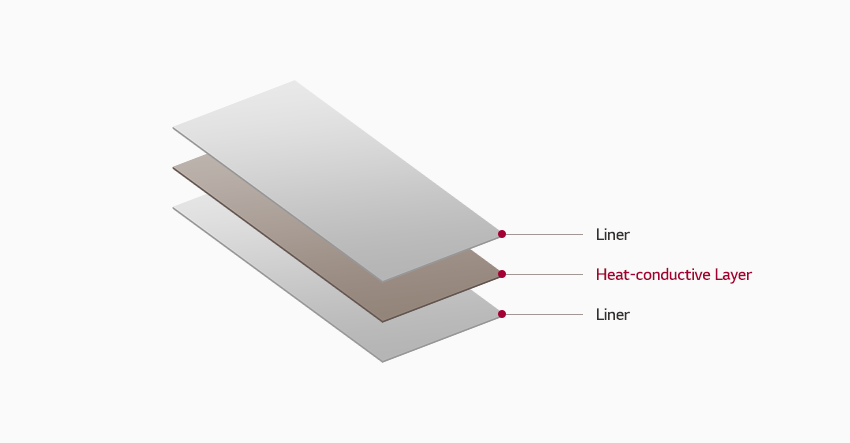

![Liner, 열전도성 Layer, Liner](/upload/file/product/69/global/1_thermalpad_en_v2.png)
![Liner, 열전도성 Layer, Liner](/upload/file/product/69/global/m_1_thermalpad_kor[0].png)
Thermal Pad is a heat-discharging pad used to control the heat generated in a battery. Located between the battery module and the heat sink of outside of the pack, it transfers heat generated inside to outside.
Category | Grade | Features | Applications | Download |
---|---|---|---|---|
Thermal Pad
|
Acrylic type
|
Has excellent heat conductivity and non-flammability with its great adhesive force to backing material, Heat conductivity(W/m.K)0.6~.3
|
Battery heat control
|
|
Thermal Pad
|
Silicon type
|
Has excellent heat conductivity, non-flammability, and durability against high temperature, Heat conductivity(W/m.K) 1.5~5
|
Battery heat control
|
|
